(HS series)Single-row spherical type

CHARACTERISTIC OF STRUCTURE，PERFORMANCE AND APPLICATION
The single-row four piont contact ball slewing ring is composed of two seat-rings.It features compact in design,light in weight,the balls contact with the circular raceway at four points,via which the axial force,radial force and resultant moment may be born simultaneously.It may be used for slewing conveyers,welding operating consoles,light,medium duty cranes,excavators and other engineering machines.

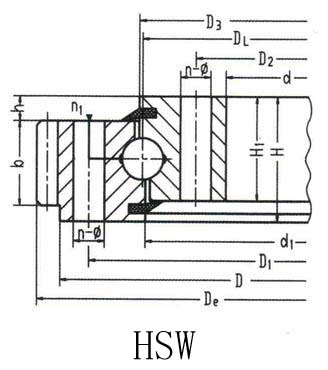

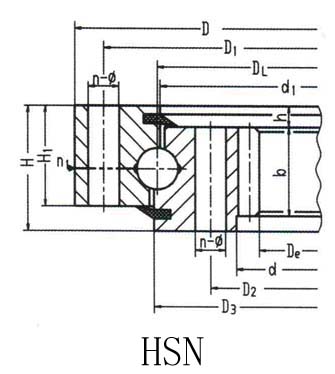

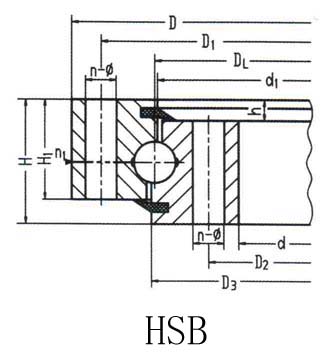

Single-row spherical type 001Single-row spherical type 002Single-row spherical type 003

No.

Basic type



Configuration

Mounting Size

sturctural

size

Ext

Gear

Int Gear

Int Gear

Weightkg

Toothless

Ext Toothless

Int Toothless

D

d

H

D1

D2

n

f

n1

H1

h

b

m

x

De

Z

x

De

Z

1

HSB.25.625

HSW.25.625

HSN.25.625

725

525

80

685

565

18

18

3

68

12

60

5

+1.4

751.9

146

+0.35

498.8

101

170

HSW.25.625A

HSN.25.625A

6

+1.15

755.5

122

+0.35

496.7

84

2

HSB.25.720

HSW.25.720

HSN.25.720

820

620

80

780

660

18

18

3

68

12

60

6

+1.4

860.3

139

+0.35

586.6

99

190

HSW.25.720A

HSN.25.720A

8

+1.0

861.1

104

+0.35

582.3

74

3

HSB.30.820

HSW.30.820

HSN.30.820

940

705

95

893

749

24

20

4

83

12

70

6

+1.4

980.6

159

+0.35

664.5

112

220

HSW.30.820A

HSN.30.820A

10

+1.0

986.2

95

+0.35

658.0

67

4

HSB.30.(32)880

HSW.30.(32)880

HSN.30.(32)880

1000

760

95

956

800

24

20

4

83

12

70

8

+1.15

1047.5

127

+0.35

718.2

91

230

HSW.30.(32)880A

HSN.30.(32)880A

10

+1.0

1046.3

101

+0.35

707.9

72

5

HSB.30.(32)1020

HSW.30.(32)1020

HSN.30.(32)1020

1170

875

95

1120

930

24

22

4

80

15

70

8

+1.4

1219.3

148

+0.35

830.1

105

310

HSW.30.(32)1020A

HSN.30.(32)1020A

10

+1.15

1219.2

118

+0.35

827.8

84

6

HSB.30.(40)1220

HSW.30.(40)1220

HSN.30.(40)1220

1365

1075

120

1310

1130

36

24

6

105

15

90

10

+1.4

1424.9

138

+0.35

1027.8

104

460

HSW.30.(40)1220A

HSN.30.(40)1220A

12

+1.0

1435.9

116

+0.35

1017.3

86

7

HSB.35.(40)1250

HSW.35.(40)1250

HSN.35.(40)1250

1400

1090

120

1350

1150

36

26

6

105

15

90

10

-0.35

1443

143

+0.35

1037

105

480

HSW.35.(40)1250A

HSN.35.(40)1250A

12

+1.0

1449.6

117

+0.35

1036.8

86

8

HSB.35.(40)1435

HSW.35.(40)1435

HSN.35.(40)1435

1595

1278

120

1535

1335

36

26

6

105

15

90

12

+1.15

1655.5

134

+0.35

1221.2

103

570

HSW.35.(40)1435A

HSN.35.(40)1435A

14

+1.0

1661.2

115

+0.35

1214.8

88

9

HSB.35.(50)1540

HSW.35.(50)1540

HSN.35.(50)1540

1720

1360

140

1660

1420

42

26

6

122

18

110

12

+1.4

1780.8

144

+0.35

1293.1

109

860

HSW.35.(50)1540A

HSN.35.(50)1540A

14

+1.15

1791.1

124

+0.35

1284.8

93

10

HSB.35.(50)1700

HSW.35.(50)1700

HSN.35.(50)1700

1875

1525

140

1815

1585

42

29

6

122

18

110

14

+1.15

1945.4

135

+0.35

1452.7

105

880

HSW.35.(50)1700A

HSN.35.(50)1700A

16

+1.15

1950.8

118

+0.35

1452.3

92

11

HSB.40.(50)1880

HSW.40.(50)1880

HSN.40.(50)1880

2100

1665

160

2030

1740

48

32

6

140

20

115

14

+1.4

2189.8

152

+0.35

1592.6

115

1290

HSW.40.(50)1880A

HSN.40.(50)1880A

18

+1.15

2194.6

118

+0.35

1579.9

89

12

HSB.40.(50)2115

HSW.40.(50)2115

HSN.40.(50)2115

2325

1900

160

2245

1980

48

32

6

140

20

115

16

+1.4

2406.5

146

+0.35

1804.1

114

1430

HSW.40.(50)2115A

HSN.40.(50)2115A

20

+1.15

2418.4

117

+0.35

1795.4

91

13

HSB.40.(60)2370

HSW.40.(60)2370

HSN.40.(60)2370

2600

2146

180

2520

2220

48

32

6

158

22

130

18

+1.4

2707.3

146

+0.35

2065.6

116

1950

HSW.40.(60)2370A

HSN.40.(60)2370A

22

+1.15

2704.4

119

+0.35

2040.9

94

14

HSB.40.(60)2600

HSW.40.(60)2600

HSN.40.(60)2600

2835

2365

180

2750

2450

54

36

6

158

22

130

18

+1.4

2941.7

159

+0.35

2263.5

127

2180

HSW.40.(60)2600A

HSN.40.(60)2600A

22

+1.15

2946.9

130

+0.35

2260.8

104

15

HSB.50.(60)2820

HSW.50.(60)2820

HSN.50.(60)2820

3085

2555

200

3000

2640

54

36

6

178

22

150

20

+1.4

3188.4

155

+0.35

2455

124

2520

HSW.50.(60)2820A

HSN.50.(60)2820A

25

+1.15

3198.4

124

+0.35

2444.1

99

16

HSW.40.1250

1415

1084

110

1350

1150

1252

24.28

6

89

21

77

10

+0.86

1476

144

510

17

HSW.40.1390

1551

1206

130

1500

1280

1241

24.26

6

107

23

85

10

+0.75

1604

157

630

18

HSN.50.1830

2002

1665

150

1940

1940

1832

54

6

125

25

100

12

+1.00

1610

135

920
